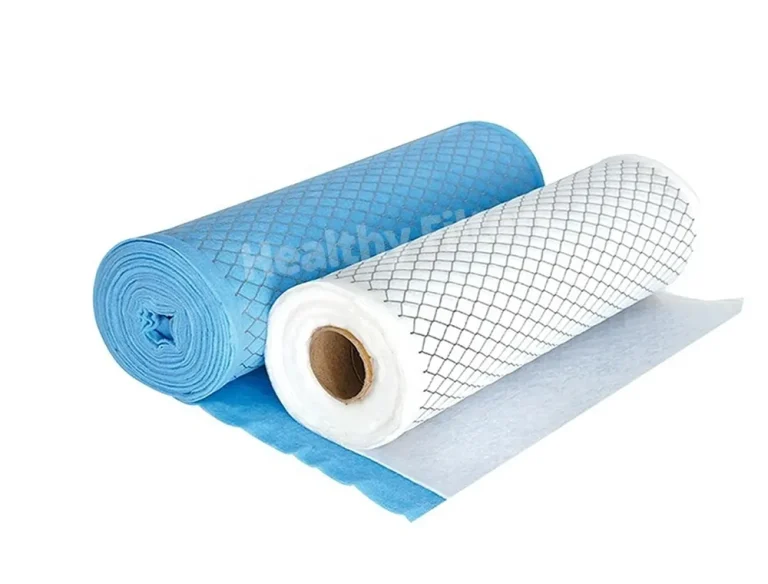

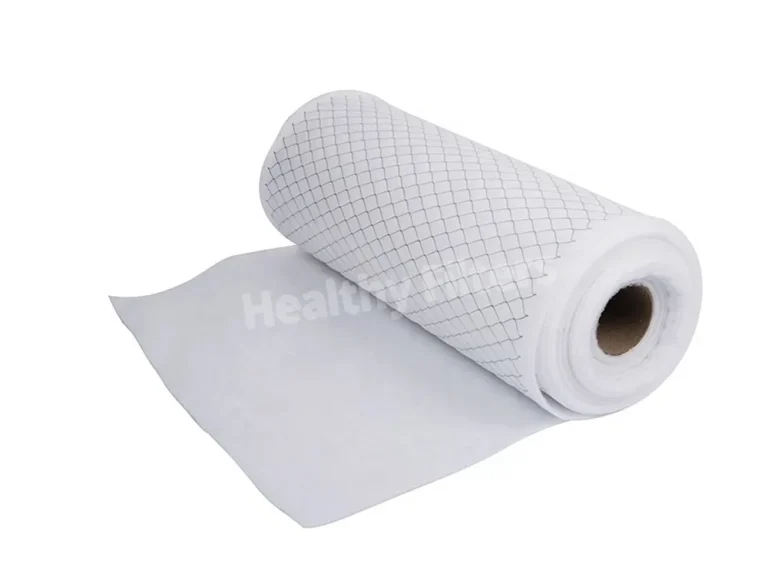

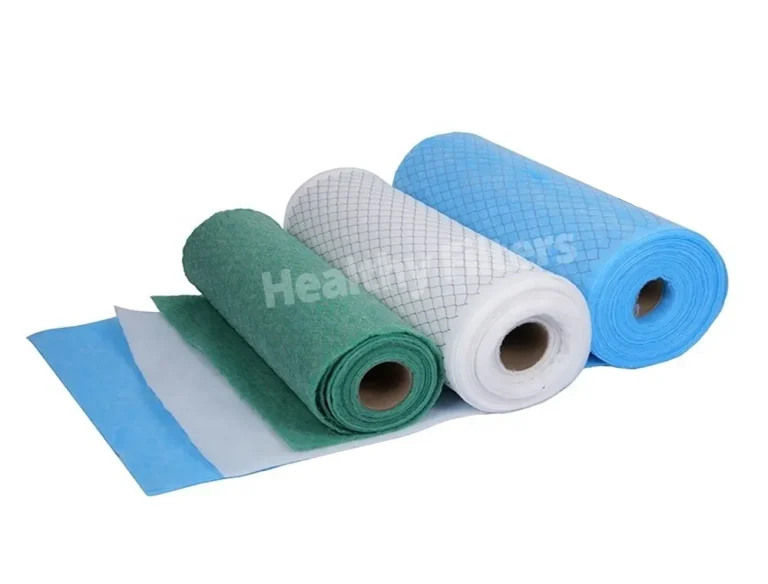

Laminated Mesh Air Filter Media Roll G3 G4 Class Metal Mesh Filter Media With Mesh

Laminated Mesh Air Filter Media Roll G3 G4 Class Metal Mesh Filter Media With Mesh

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

Features

The wire filter mesh is made of wire and filter cloth. The material we use is importedpolyester fiber filter material, with different melting points inside and outside with non-directional fiber staggered three-dimensional structure, through acupuncture, adhesive.hot melt process made, divided into junior high efficiency filtration. This filter media is usually constructed using resilient synthetic fibers that are resistant to breakage. It is strengthened with a mesh layer to enhance its rigidity and structural strength. As a result, it is extremely efficient in environments with significant air pollution and contamination.

Custom Sizes Are Available Upon Request.

We Offer Extensive Customization Options To Meet Your Specific Needs.

Rigorous Quality Control Procedures

Each Shipment Is Accompanied By A Comprehensive Quality Inspection Certificate, To Ensure They Meet The Release Standard.

Extremely Fast Delivery !

Expedited Processing Available For Urgent Orders, Guaranteeing 1~2 Week Delivery.

Free Samples For Quality Check !

To Facilitate Your Evaluation, We Offer Complimentary A4 Samples. Additionally, We Welcome Factory Tours To Showcase Our Machinery And Production Processes Firsthand.

Laminated air filter media rolls, classified as G3 and G4, are crafted from durable, non-breakable synthetic fibers reinforced with a mesh layer. This design enhances the media’s stiffness and structural integrity, making it ideal for high-pollution environments. The reinforced structure ensures superior filtration efficiency and a longer filter life, reducing the need for frequent changes and lowering overall costs. These attributes make the media perfect for pre-filters or primary filters in HVAC systems, providing a reliable solution for maintaining clean and healthy air.

FEATURES

● Large Filtration area

● High dust ohlding capacity

● Grade: G3, G4, M5, M6, F7, F8, F9

● Synthetic fibers

● Frame Options: Cardboard, aluminum and galvanized steel

● Heat resistance: 80℃

● The structure is robust, made from break-resistant PET synthetic fibers, and produced through various processes such as needling, bonding, and thermal bonding methods

● Large filtration area: The filtering section is pleated, which increases the filtration surface area, reduces the resistance of the filter, and results in a longer lifespan compared to flat filters

● Long lifespan: The product features tightly bonded fibers, break resistance, minimal shedding, corrosion resistance, wear resistance, and excellent elastic recovery

● Process characteristics: The polyester fiber filter material uses fibers with different melting points arranged in a non-directional three-dimensional structure. It is produced through processes such as needling, bonding, and thermal melting

APPLICATIONS

Covering cotton can be divided into primary effect covering cotton and medium effect covering cotton. Used as filter media for metal filters such as cardboard frames, aluminum frames, and adhesive frames. Used to produce primary effect plate air filters.



SPECIFICATIONS

Model Filter  Grade Filter Efficiency Resistance (Pa) Thickness Filter Media Weight (g/㎡)
HF-M8 MERV 8 40-45% 4 1.5mm 110gsm
HF-M11 MERV 11 60-65% 4 2mm 95gsm
HF-M13 MERV 13 85-90% 5 2mm 95gsm
HF-M14 MERV 14 90-95% 6 2.5mm 135gsm



PRODUCT DETAILS

Laminated Mesh Air Filter Media Roll G3 G4 Class details01 Laminated Mesh Air Filter Media Roll G3 G4 Class details02 Laminated Mesh Air Filter Media Roll G3 G4 Class details03

Laminated Mesh Air Filter Media Roll G3 G4 Class details04

Laminated Mesh Air Filter Media Roll G3 G4 Class details05
