Products

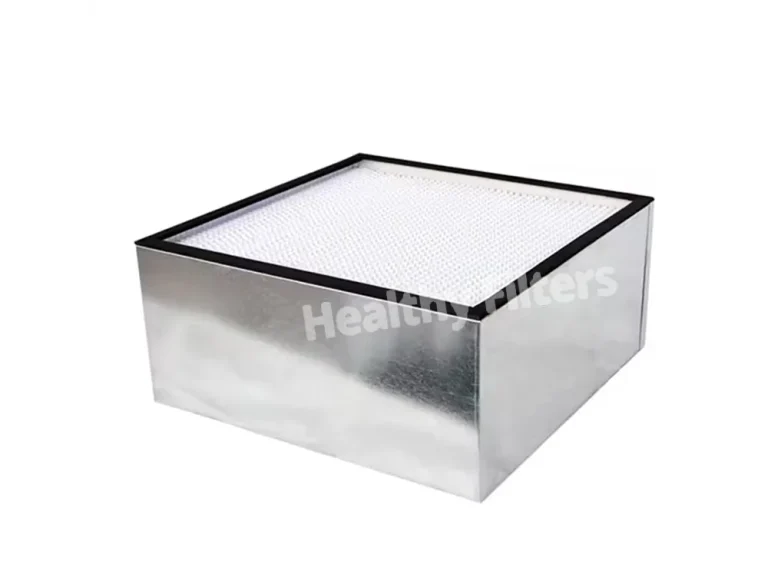

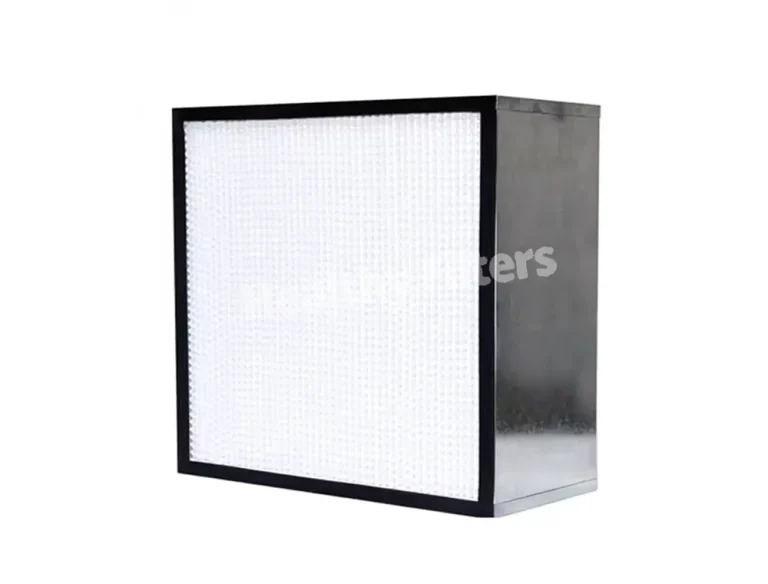

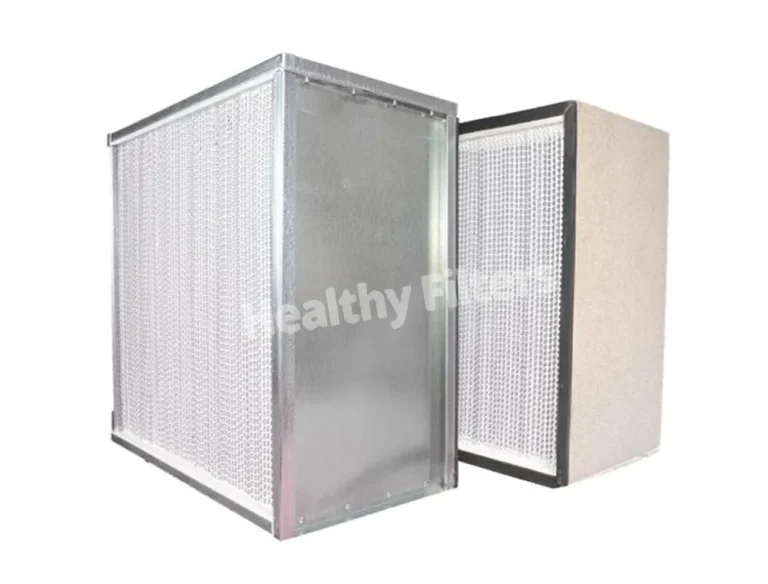

Healthy Filters Customized 0.1um HEPA Separated High Efficiency Air Filter H13 Large Merv 18 U15

Healthy Filters Customized 0.1um HEPA Separated High Efficiency Air Filter H13 Large Merv 18 U15

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

Features

A deep pleated HEPA (High Efficiency Particulate Air) filter is similar to a standard HEPA filter but has deeper pleats, providing greater filtration surface area within a compact space. 1. Greater Filtration Surface Area: Deep pleated HEPA filters have pleats that are deeper compared to standard HEPA filters. This design increases the available filtration surface area, allowing for more efficient capture of particles. 2. High Filtration Efficiency: Like standard HEPA filters, deep pleated HEPA filters are highly efficient in capturing particles as small as 0.3 microns, with a minimum efficiency of 99.97%. The increased surface area of the deep pleats enhances filtration performance. 3. Compact Design: Despite having deeper pleats, deep pleated HEPA filters are designed to fit into standard filter housings or air handling units. This allows for easy retrofitting into existing systems without requiring significant modifications.

Custom Sizes Are Available Upon Request.

We Offer Extensive Customization Options To Meet Your Specific Needs.

Rigorous Quality Control Procedures

Each Shipment Is Accompanied By A Comprehensive Quality Inspection Certificate, To Ensure They Meet The Release Standard.

Extremely Fast Delivery !

Expedited Processing Available For Urgent Orders, Guaranteeing 1~2 Week Delivery.

Free Samples For Quality Check !

To Facilitate Your Evaluation, We Offer Complimentary A4 Samples. Additionally, We Welcome Factory Tours To Showcase Our Machinery And Production Processes Firsthand.

The deep pleated HEPA filter includes three types: paper clapboard high-efficiency filter, aluminum foil clapboard high-efficiency filter, and high-temperature resistant clapboard filter. It is extensively utilized in various industries such as electronics, semiconductors, precision machinery, pharmaceuticals, hospitals, and food, to achieve high cleanliness standards in both civil and industrial clean environments during the final filtration stage.

High-volume high-efficiency air filters with a shape similar to that of a computer chassis are made of metal or plastic housings sealed with a specific sealant (polyurethane adhesive), and the filter element is made of fiberglass filter paper. This kind of filter has a regular appearance and is easy to install, which reduces the installation time and labor of workers. The dust holding capacity is several times that of an ordinary high efficiency air filter without partition, and the designed maximum air volume is also several times that of an ordinary high efficiency filter without partition, which greatly reduces the running cost of the enterprise.

FEATURES

● Size customizable

● OEM&ODM Service

● Media:Fiberglass Paper

● Frame:Aluminum or Galvanized

● Safe material, non-toxic and odorless

● The use of corrugated paper partition, accurate to maintain the spacing of the pleated layer, reliable and stable support

● The 180 pleats on both sides of the box are flipped to form a wedge-shaped pleat layer, preventing damage to the filter media

● Specific seamless sealing technology, good elasticity, no deformation, no shedding, installation and use will not leak

APPLICATIONS

Deep Pleated HEPA filters are mainly used to capture particles below 0.5um and various suspended matters, as the end filtration of various filtration systems. Widely used in optical electronics, precision instruments, LCD liquid crystal manufacturing, biomedicine, beverage and food, PCB printing and other industries dust-free purification workshop air conditioning end air supply.



SPECIFICATIONS

Product Deep Pleated Hepa Filter
Medium material Fiberglass Paper
Standard According to EN779 standard
Dimension Customizable
Range H13
OEM Welcome
Frame Metal



PRODUCT DETAILS

Healthy Filters Customized 0.1um HEPA Separated details01

Healthy Filters Customized 0.1um HEPA Separated details02

Healthy Filters Customized 0.1um HEPA Separated details03Healthy Filters Customized 0.1um HEPA Separated details04
