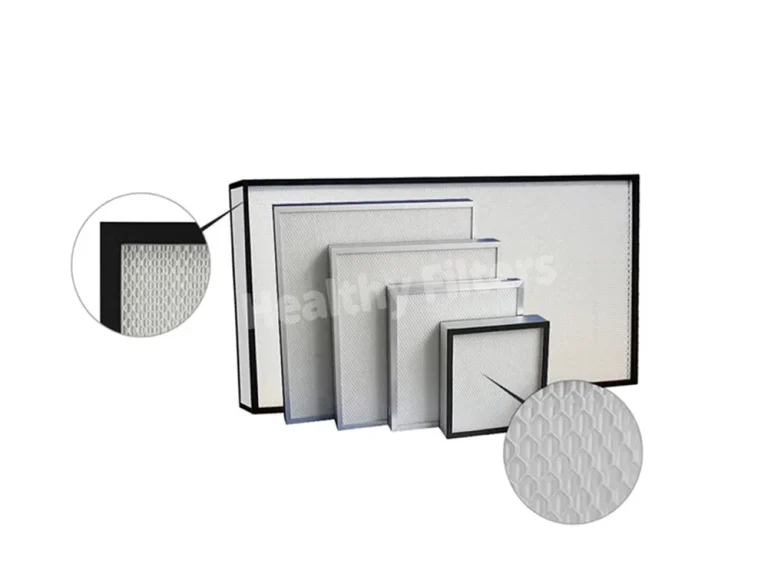

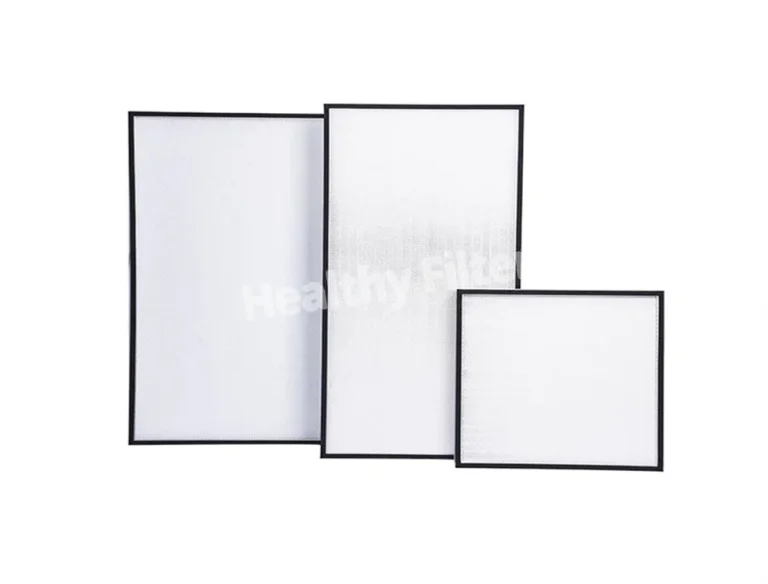

The Mini Pleated Cleanroom Panel is a specialized air filtration device for cleanroom environments. It utilizes advanced mini-pleat technology to enhance filter media area, thus improving filtration efficiency. This panel is lightweight, compact, and easy to install and maintain. It effectively removes airborne particles and ensures clean air quality in clean rooms. Additionally, it has a long service life and low operating costs, making it suitable for efficient cleanroom operations.
Recognizing the HEPA filter as a consumable component, replacement intervals typically range from 6 to 12 months, especially in areas affected by severe haze. Crafted from ultra-fine glass fiber filter paper and featuring protective plastic spray nets at the inlet and outlet, the purifier guarantees efficient performance.

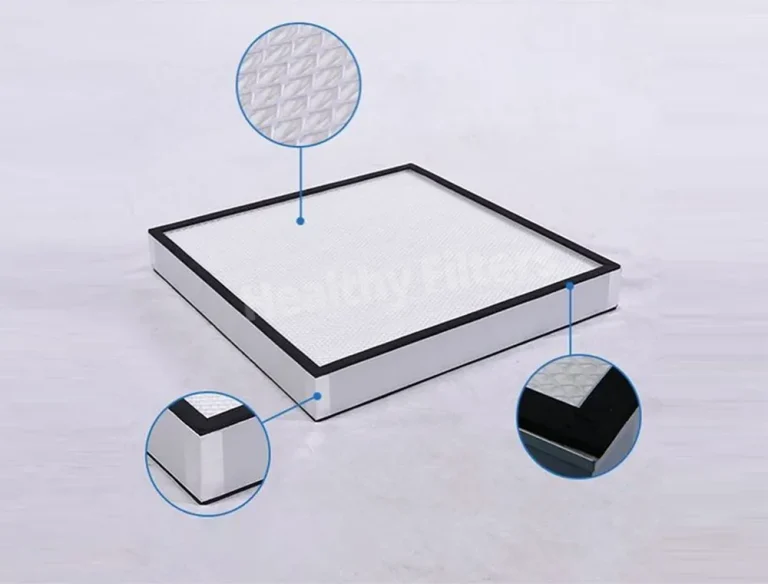

The robust aluminum profile frame, resistant to high temperatures and corrosion, ensures durability and flexibility to meet customer needs. Additionally, polyurethane foam sealing tape ensures thorough sealing without any blind spots, mitigating the risk of leakage.
FEATURES● Long service life ● High efficiency:H14-U16 ● Light weight ● Sturdy structure ● Frame: Aluminum of galvanized ● Filter: Fibergalss ● Available in a variety of sizes |
APPLICATIONSCleanroom, commercial and industrial ventilation and air conditioning systems |
Type |
Size(mm)
|
Rated Airflow(m3/h) |
Filter HFea(m2) |
Dust Holding Capacity (g/m2) |
Initial Pressure Drop(Pa) |
Final Pressure Drop(Pa) |
Average arrestance |
HF-WGB
|
484x484x50 |
500 |
4.6 |
300 |
<220 |
400 |
>99.99% |
610x610x50 |
800 |
7.5 |
450 |
<220 |
400 |
>99.99% | |
305x305x69 |
260 |
2.5 |
150 |
<220 |
400 |
>99.99% | |
484x484x69 |
700 |
6.6 |
400 |
<220 |
400 |
>99.99% | |
610x610x69 |
1100 |
10.7 |
650 |
<220 |
400 |
>99.99% | |
915x610x69 |
1600 |
16 |
950 |
<220 |
400 |
>99.99% | |
610x610x90 |
1500 |
14.9 |
900 |
<220 |
400 |
>99.99% | |
1220x610x69 |
2200 |
21.3 |
1000 |
<220 |
400 |
>99.99% | |
915x610x90 |
2000 |
22.3 |
1200 |
<220 |
400 |
>99.99% | |
1220x610x90 |
2800 |
29.8 |
1800 |
<220 |
400 |
>99.99% |
