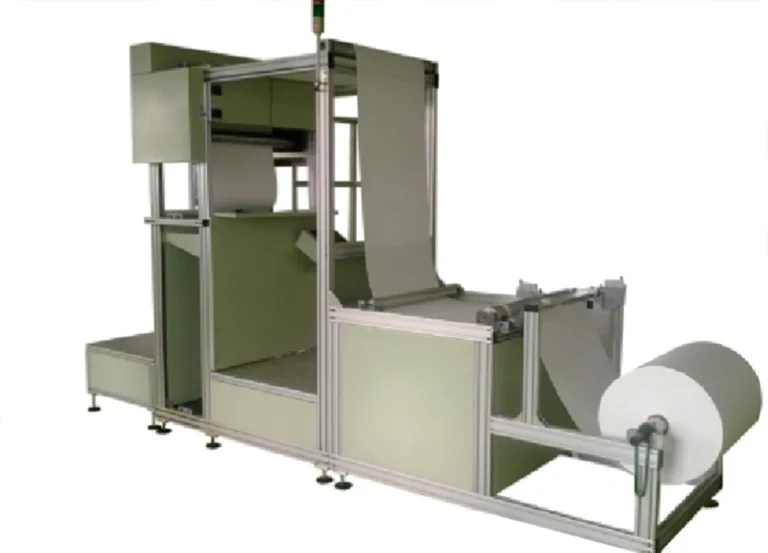

The equipment is mainly used to produce high efficiency air filter core with partition. The surface of the produced filter element is flat. The unique filter paper crease technology (patented technology) has less damage to the filter paper and generates more beautiful shape.
Selectable width：800mm/1000mm/1300mm
● The size of paper folding: 50～300mm(No need to replace the indentation roller group, automatic matching)
● Maximum width of filter paper: 780mm
● Maximum rolling diameter of filter pape: 800mm
● Printing distance(Corrugated height): 2～10mm(No need to change the roller group, automatic matching)
● Production speed: 10～30 fold/min
● Dimension(L×W×H): 4000mm×2000mm×2300mm
● Overall power: 3KW
● Supply of compressed air(supplied by user): 1 m3(one cubic meter) / min
● Weight：1000KG
The paper folding machine is the processing equipment of theinternal materials in the paper frame filter, which can be appliedto the paper frame filter core folding of different heights,convenient and efficient.
| Product name | Origami machine(special for paper frame filter) |
| Color | Customer Requirement |
| Overall Dimensions | 4000*2000*2300mm |
| Power | 3KW |
| Speed | 10~30 folds per minute |
| Advantage | lt is not affected by thickness of filter bag and features fastconnection, easy operation and strong practicality. |
1.The machine fold and fold high are controlled by computer,can be arbitrary adjustment.
2.The machine of glass fiber paper and corrugated molding of aluminum foil and paper can be completed at the same time in the above operation.
3.The machine can be heated in a print mark ,print out the PP filter paper.
4.This machine is equipped with the frequency converter to match different working conditions.
5.Embossing, folding, electronic counting, cutting, customized flower shape and other patterns.
6.Adopt the latest international PLC programming technology, frequency control and electronic braking.Trimming paper precisely.
7.Touch man-machine interface operating system, the core is the roll forming system, the application of PLC program wind column forming technology, to achieve faster winding, more beautiful. Automatically spray glue.
This machine is mainly used for plate glass fiber and PP filter material folding forming.
