Activated Carbon Metal Mesh Laminated Synthetic Fiber Material Wire Air Pre Filter Media Roll

Activated Carbon Metal Mesh Laminated Synthetic Fiber Material Wire Air Pre Filter Media Roll

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest

Features

This filter media is usually constructed using resilient synthetic fibers that are resistant to breakage. It is strengthened with a mesh layer to enhance its rigidity and structural strength. As a result, it is extremely efficient in environments with significant air pollution and contamination. Adopt with high quality polyester fiber, our filter materials are made by needle punching, laminating, electrostatic treatment and other processes.

Custom Sizes Are Available Upon Request.

We Offer Extensive Customization Options To Meet Your Specific Needs.

Rigorous Quality Control Procedures

Each Shipment Is Accompanied By A Comprehensive Quality Inspection Certificate, To Ensure They Meet The Release Standard.

Extremely Fast Delivery !

Expedited Processing Available For Urgent Orders, Guaranteeing 1~2 Week Delivery.

Free Samples For Quality Check !

To Facilitate Your Evaluation, We Offer Complimentary A4 Samples. Additionally, We Welcome Factory Tours To Showcase Our Machinery And Production Processes Firsthand.

Mesh Synthetic Filter Cotton RoIlt, through a gradual encryption manufacturing process, this media achieves low initial resistance and high dust holding capacity. It can be used to produce pleated filters after laminating with wire mesh. It features excellent flame resistance, meeting European DIN53438-F1 standards, and is highly moisture-resistant, capable of withstanding up to 100% humidity.

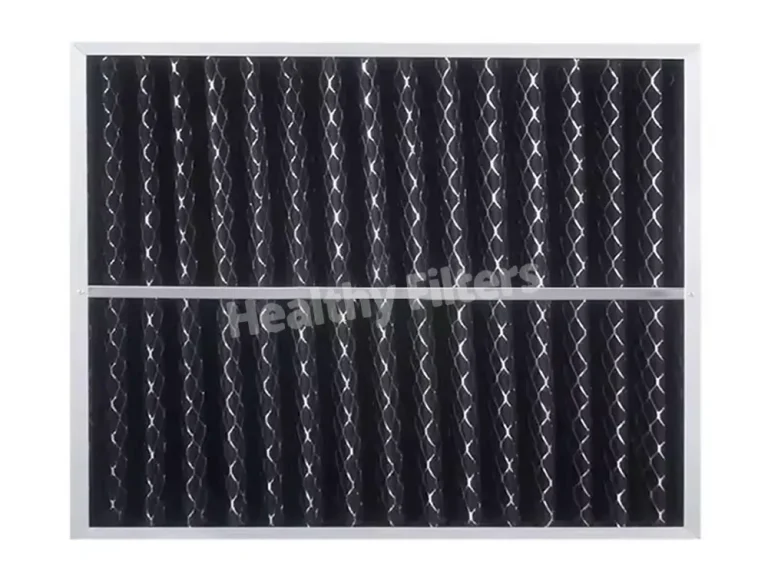

Healthy Filters mesh filter material is a layer of metal mesh or rigid plastic mesh bonded on the air outlet surface of the coarse and medium efficiency filter material, which increases the stiffness and hardness of the material. It is easy to shape after folding and does not deform when used under high air flow.

FEATURES

● Media: 100% Polyester fibre

● Efficiency: G3 G4 as per EN779

● Average Arrestance:  92% @5μm

● Initial resistance: 45 Pa

● Recommended final pressure drop: 250Pa

● Humidity resistance: 90%RH

● Max Temperature: 60 ℃

● DIN 53438 Flammability: F1

● UL 900 Standard:  Class 2

● Air flow rate:  2.5m/s

APPLICATIONS

Widely used in bag-type, plate-type, fold-type, and winding-type filters, this media is suitable for pre-filtration in central air conditioning and central ventilation systems, large air compressor pre-filtration, and clean return air systems.



SPECIFICATIONS

Part Name Supply Laminated Mesh Air Filter Media
size customized
Colour Black ,White (Customized)
Weight  ‎ 110g
Efficiency (Customized)
Package  PP+PET



PRODUCT DETAILS

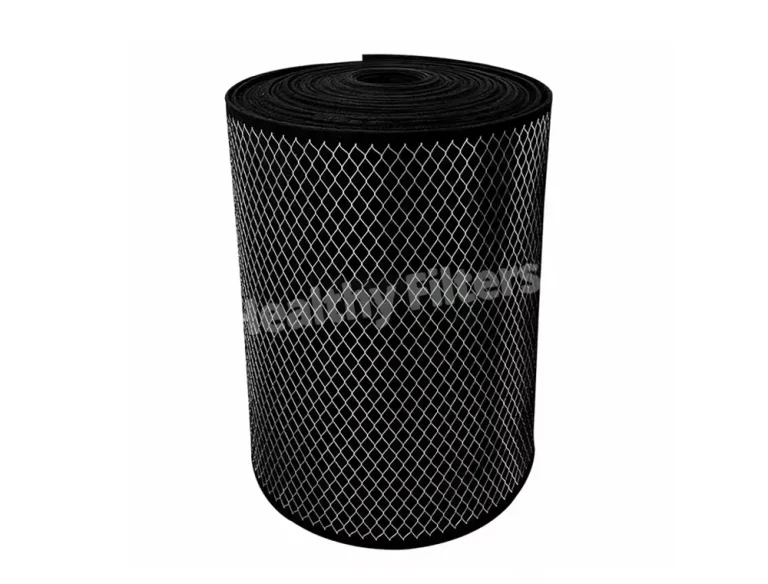

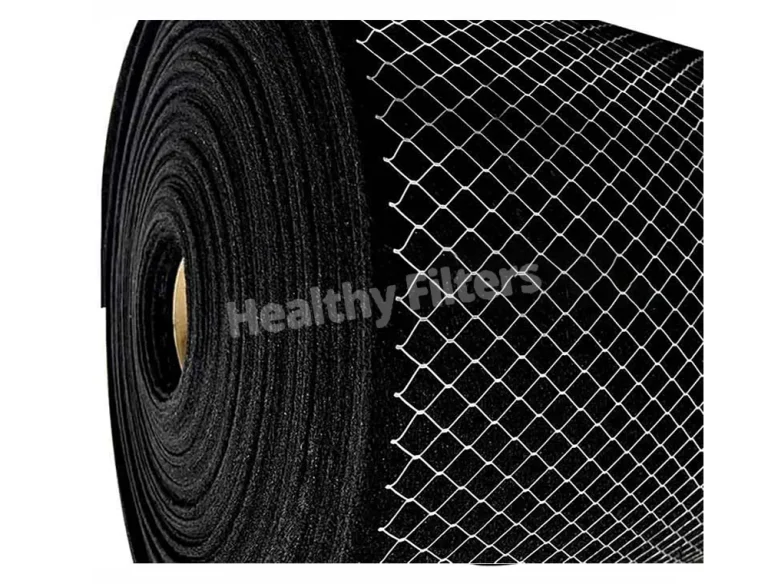

Activated Carbon Metal Mesh Laminated Synthetic details01 Activated Carbon Metal Mesh Laminated Synthetic details02 Activated Carbon Metal Mesh Laminated Synthetic details03
